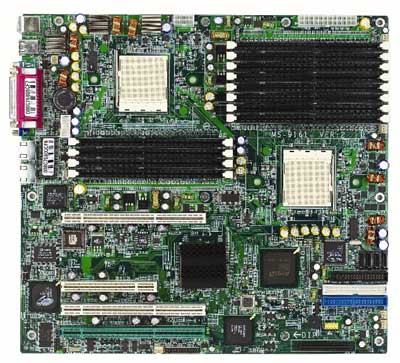

品名：MSI-9161服务器主板 |
|
俗称：微星 |
|
英文名：MSI |
|
产地：台湾 |
|
 |
|
市场价：0 |
|
直销价：0 |
|
材料介绍： |
MSI-9161服务器主板规格:
CPU
Supports dual AMD Opteron 200 and Sinlge Opteron100 family processors
Supports dual AMD Opteron200 Series processor with 1GHz FSB
Supports Opteron EE/HE series CPU
AMD x86-64 Technology
Supports ECC/Registered memory
Chipset
AMD-8131 chipset
- HyperTransport technology tunnel with side A(16 bits) and side B (8 bits)
- Each side support transfer rates of 1600,1200,800 and 400 megatransfers per second
- 133/100/66 MHz in PCI-X mode and 66/33 MHz in PCI mode
AMD-8111 chipset
- HyperTranportI/O Hub(support up to 800 megabytes per second with 200MHz clock)
- A 33MHz/32bit PCI 2.2 compliant bus interface supports up to eight external devices
- IOAPIC controller
- USB1.1 hosts supporting six ports
Main Memory
Supports 12 DIMM sockets Single/Dual channel DDR 400/333/266 memory (please refer to QVL)
Supports Memory up to 24G (128Mbx16 DRAMs) to 2 Gbyte(1Gbx4 DRAMs)
Supports interleaving memory within DIMMs
Chip Kill ECC allows continuous correction of 4-bit errors in a failed x4 memory device
HDD Interface
K8D Master 3-133 FS
- SCSI interface supported by Adaptec AIC-7901 Ultra-320 SCSI controller
- Dual Ultra DMA 133/100/66 IDE controllers integrated in AMD-8111 (with 2 IDE connector onboard/can connect up to 4 Ultra ATA drives)
K8D Master 3-133 FA4R
- Serial ATA RAID interface supported by Silicon Image 3114 PCI to four-port Serial ATA host controller and support SATA RAID 0, 1, and 0+1 (with 4 SATA connectors onboard/can connect up to 4 Serial ATA drives)
- Dual Ultra DMA 133/100/66 IDE controllers integrated in AMD-8111 (with 2 IDE connector onboard/can connect up to 4 Ultra ATA drives)
Slots
1 PCI-X 133
2 PCI-X 66/100
1 PCI-32
Network
Broadcom BCM5704C LAN controllers
Provides 1000,100 and 10MB/s data rates, 64-bit/100MHz PCI-X bus
Dual Ports
Video
Integrated ATI Rage XL graphics controller
Power Management Features
Wake up on LAN(WOL), USB, PCI, KBD/Mouse
RTC alarm
Support ACPI S1, S4 and S5 function
System Management
SMBus (I2C)
Temperature, voltage and fan monitors
Chassis Intrusion
BIOS
- 4 Mbit Flash EEPROM
- PCI 2.2 compliant, VPD, and DMI
- PnP 1.0A, SMBIOS 2.3, ACPI 1.0A, 2.0
- Supports PXE boot protocol
- APM 1.2, WOL
- PC2001 system design compliant
Onboard connectors
- Power connectors (compatible with EPS12V power supply)
- Front panel connector
- Six 3-pin cooling fan locking header (4 for system and 2 for CPUs)
- 3-pin Clear CMOS header with a jumper
- Stacked Mouse and keyboard ports
- USB header (Front), Stacked 2 USB (Rear)
- RJ-45 with LEDs
- Stacked 1 serial and 1 parallel ports
- COM2 connector
- 4 x SATA ports - FA4R
- 1 x SCSI connector - FS
Onboard I/O
- 1 x PS/2 Keyboard port
- 1 x PS/2 Mouse port
- 1 x floppy port
- 2 x IDE ports
- 1 x serial port
- 1 x parallel port
- 4 x USB ports (2 front and 2 rear)
- 1 x VGA port
|
|
|
|
